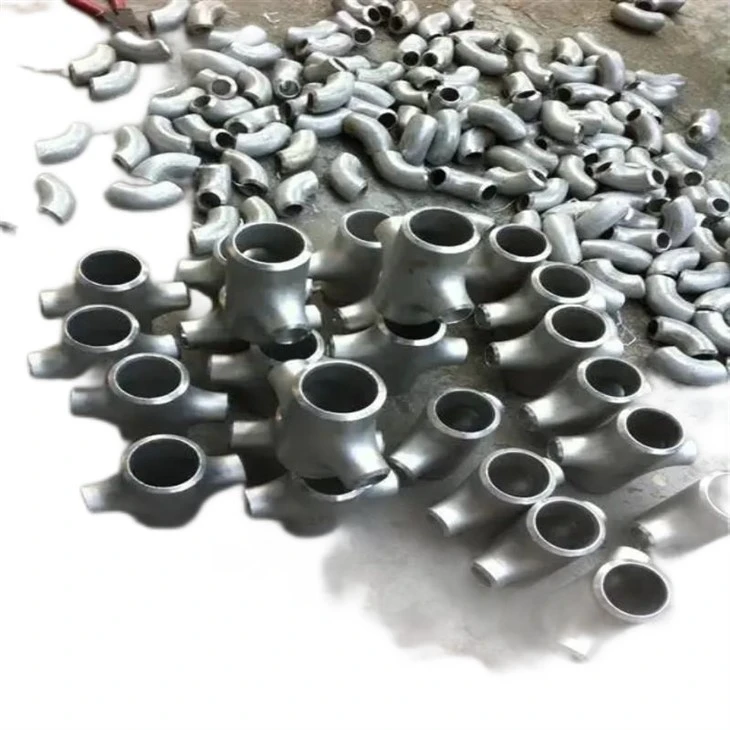

Butt Weld Equal Cross
The steel butt weld equal cross is mainly used to split a pipeline into two or more pipes of the same diameter, so that the fluid can flow to different equipment or pipelines.
Butt weld equal cross is a type of pipe fitting and pipeline connector used at the branch of the main pipeline with all four connecting ends having the same size.
The steel butt weld equal cross is mainly used to split a pipeline into two or more pipes of the same diameter, so that the fluid can flow to different equipment or pipelines.
Size range: 1/2″~80″ (DN15~DN2000)
Pressure level: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Material: 304/304L, 316/316L, 316Ti, 321, 317L, S31803, S31254, S32750, S32760, A234 WPB, 20#, etc.
Manufacturing process: sawing, hot pressing, cold extrusion, heat treatment, machining
Product standards: ASME B16.9, GB/T12459, GB/T13401, GB/T10752, SH3408, SH3409, HG/T21631, HG/T21635, SY/T0510, JIS2311/2312/2313, DL/T695, EN 10253, etc.
Product type: equal diameter cross, equal diameter cross
Technical Specifications & Dimensions
|
Nominal Pipe Size |
Outside to Bevel |
Center to End |
||
|
DN |
NPS |
D1×D2 |
C |
M |
|
250 |
10 |
273.1 |
216 |
216 |
|
250×200 |
10×8 |
273.1×219.1 |
203 |
|
|
250×150 |
10×6 |
273.1×168.3 |
194 |
|
|
250×125 |
10×5 |
273.1×141.3 |
191 |
|
|
250×100 |
10×4 |
273.1×114.3 |
184 |
|
|
300 |
12 |
323.9 |
254 |
254 |
|
300×250 |
12×10 |
323.9×273.0 |
241 |
|
|
300×200 |
12×8 |
323.9×219.1 |
229 |
|
|
300×150 |
12×6 |
323.9×168.3 |
219 |
|
|
300×125 |
12×5 |
323.9×141.3 |
216 |
|
|
350 |
14 |
355.6 |
279 |
279 |
|
350×300 |
14×12 |
355.6×323.8 |
270 |
|
|
350×250 |
14×10 |
355.6×273.0 |
257 |
|
|
350×200 |
14×8 |
355.6×219.1 |
248 |
|
|
350×150 |
14×6 |
355.6×168.3 |
238 |
|
|
400 |
16 |
406.4 |
305 |
305 |
|
400×350 |
16×14 |
406.4×355.6 |
305 |
|
|
400×300 |
16×12 |
406.4×323.8 |
295 |
|
|
400×250 |
16×10 |
406.4×273.0 |
283 |
|
|
400×200 |
16×8 |
406.4×219.1 |
373 |
|
|
400×150 |
16×6 |
406.4×168.3 |
264 |
|
|
450 |
18 |
457.0 |
343 |
343 |
|
450×400 |
18×16 |
457.0×406.4 |
330 |
|
|
450×350 |
18×14 |
457.0×355.6 |
330 |
|
|
450×300 |
18×12 |
457.0×323.8 |
321 |
|
|
450×250 |
18×10 |
457.0×273.0 |
308 |
|
|
450×200 |
18×8 |
457.0×219.1 |
298 |
|
|
500 |
20 |
508.0 |
381 |
381 |
|
500×450 |
20×18 |
508.0×457.0 |
368 |
|
|
500×400 |
20×16 |
508.0×406.4 |
356 |
|
|
500×350 |
20×14 |
508.0×355.6 |
356 |
|
|
500×300 |
20×12 |
508.0×323.8 |
346 |
|
|
500×250 |
20×10 |
508.0×273.0 |
333 |
|
|
500×200 |
20×8 |
508.0×219.1 |
324 |
|
|
550 |
22 |
559.0 |
419 |
419 |
|
550×500 |
22×20 |
559.0×508.0 |
406 |
|
|
550×450 |
22×18 |
559.0×457.0 |
394 |
|
|
550×400 |
22×16 |
559.0×406.4 |
381 |
|
|
550×350 |
22×14 |
559.0×355.6 |
381 |
|
|
550×300 |
22×12 |
559.0×323.8 |
371 |
|
|
550×250 |
22×10 |
559.0×273.0 |
359 |
|
|
600 |
24 |
610.0 |
432 |
432 |
|
600×550 |
24×22 |
610.0×559.0 |
432 |
|
|
600×500 |
24×20 |
610.0×508.0 |
432 |
|
|
600×450 |
24×18 |
610.0×457.0 |
419 |
|
|
600×400 |
24×16 |
610.0×406.4 |
406 |
|
|
600×350 |
24×14 |
610.0×355.6 |
406 |
|
|
600×300 |
24×12 |
610.0×323.8 |
397 |
|
|
600×250 |
24×10 |
610.0×273.0 |
384 |
|
|
650 |
26 |
660.0 |
495 |
495 |
|
650×600 |
26×24 |
660.0×610.0 |
486 |
|
|
650×550 |
26×22 |
660.0×559.0 |
470 |
|
|
650×500 |
26×20 |
660.0×508.0 |
457 |
|
|
650×450 |
26×18 |
660.0×457.0 |
444 |
|
|
650×400 |
26×16 |
660.0×406.4 |
432 |
|
|
650×350 |
26×14 |
660.0×355.6 |
432 |
|
|
650×300 |
26×12 |
660.0×323.8 |
422 |
|
|
700 |
28 |
711.0 |
521 |
521 |
|
700×650 |
28×26 |
711.0×660.0 |
521 |
|
|
700×600 |
28×24 |
711.0×610.0 |
508 |
|
|
700×550 |
28×22 |
711.0×559.0 |
495 |
|
|
700×500 |
28×20 |
711.0×508.0 |
483 |
|
|
700×450 |
28×18 |
711.0×457.0 |
470 |
|
|
700×400 |
28×16 |
711.0×406.4 |
457 |
|
|
700×350 |
28×14 |
711.0×355.6 |
457 |
|
|
700×300 |
28×12 |
711.0×323.8 |
448 |
|
|
750 |
30 |
762.0 |
559 |
559 |
|
750×700 |
30×28 |
762.0×711.0 |
546 |
|
|
750×650 |
30×26 |
762.0×660.0 |
546 |
|
|
750×600 |
30×24 |
762.0×610.0 |
533 |
|
|
750×550 |
30×22 |
762.0×559.0 |
521 |
|
|
750×500 |
30×20 |
762.0×508.0 |
508 |
|
|
750×450 |
30×18 |
762.0×457.0 |
495 |
|
|
750×400 |
30×16 |
762.0×406.4 |
483 |
|
|
750×350 |
30×14 |
762.0×355.6 |
483 |
|
|
750×300 |
30×12 |
762.0×323.6 |
473 |
|
|
750×250 |
30×10 |
762.0×273 |
460 |
|
|
800 |
32×32 |
813.0 |
597 |
597 |
|
800×750 |
32×30 |
813.0×762.0 |
584 |
|
|
800×700 |
32×28 |
813.0×711.0 |
572 |
|
|
800×650 |
32×26 |
813.0×660.0 |
572 |
|
|
800×600 |
32×24 |
813.0×610.0 |
559 |
|
|
800×550 |
32×22 |
813.0×559.0 |
546 |
|
|
800×500 |
32×20 |
813.0×508.0 |
533 |
|
|
800×450 |
32×18 |
813.0×457.0 |
521 |
|
|
800×400 |
32×16 |
813.0×406.4 |
508 |
|
How Steel Butt Weld Equal Cross Is Manufactured?
- Hydraulic bulging: A hydraulic press injects liquid into a tube blank matching a four-way pipe's diameter. As pressure rises, metal flows in the mold, expanding under cylinder and liquid pressure. Efficient, it boosts wall thickness. Suitable for low carbon, alloy, stainless steel, and non-ferrous metals.
- Hot pressing forming: It does not require a large equipment tonnage and is more widely used in various materials, especially for large diameter and thick pipe wall tees.
What Steel Materials Are Used For A Steel Butt-weld Equal Cross?
Including carbon steel, cast steel, alloy, stainless steel, copper, aluminum alloy. Carbon steel cross is cheap, strong, corrosion-resistant for general fluids. Stainless steel cross excels in corrosion, heat resistance, hygiene, used in food, medicine, chemicals.
Applications Of Butt Weld Equal Cross In Key Industries
Chemical industry
Used for the transportation and distribution of various corrosive, toxic and harmful fluids in chemical production.
01
Oil and gas industry
In the process of oil and gas extraction, transportation, and processing, equal diameter tees are used to connect different pipelines to achieve the transportation and diversion of oil and gas.
02
Water supply and drainage industry
In urban water supply and drainage systems, it is used to distribute water from the main pipeline to various branch pipelines to meet the water needs of residents' daily life, industrial production, and other purposes.
03
Construction industry
In the HVAC and fire protection systems of buildings, equal diameter tees are used to connect pipelines and achieve the transportation and distribution of fluids such as air and water.
04
Mechanical manufacturing industry
In the hydraulic and lubrication systems of mechanical equipment, equal diameter tees are used to connect pipelines and achieve the transportation and distribution of oil.
05
Hot Tags: butt weld equal cross, China butt weld equal cross manufacturers, suppliers, factory, buttweld end cap, steel pipe weld fittings
